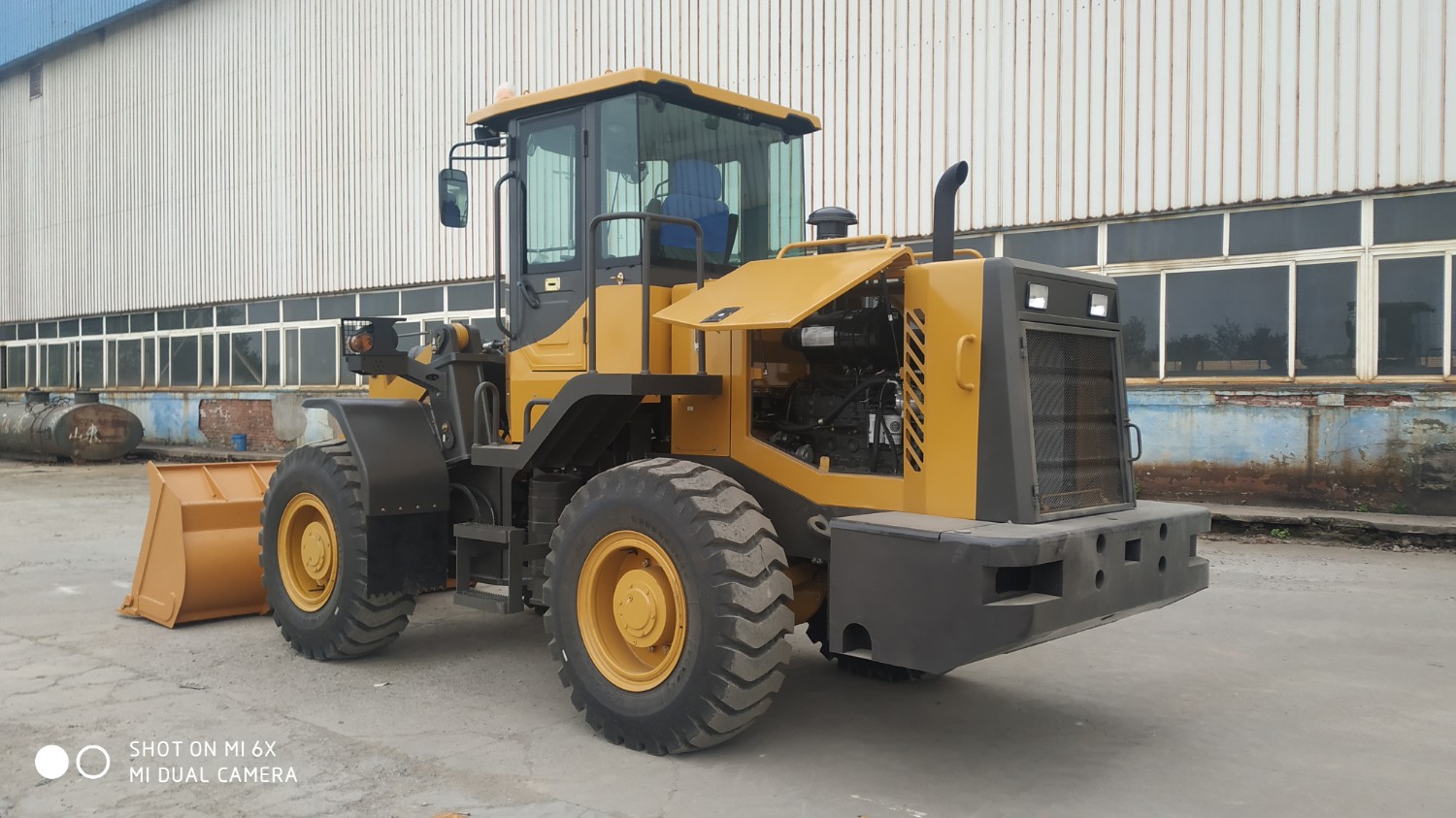

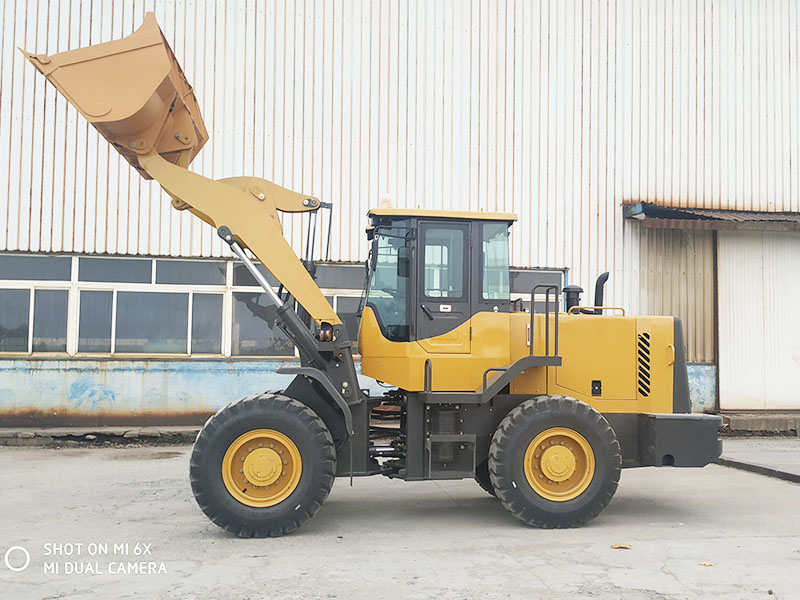

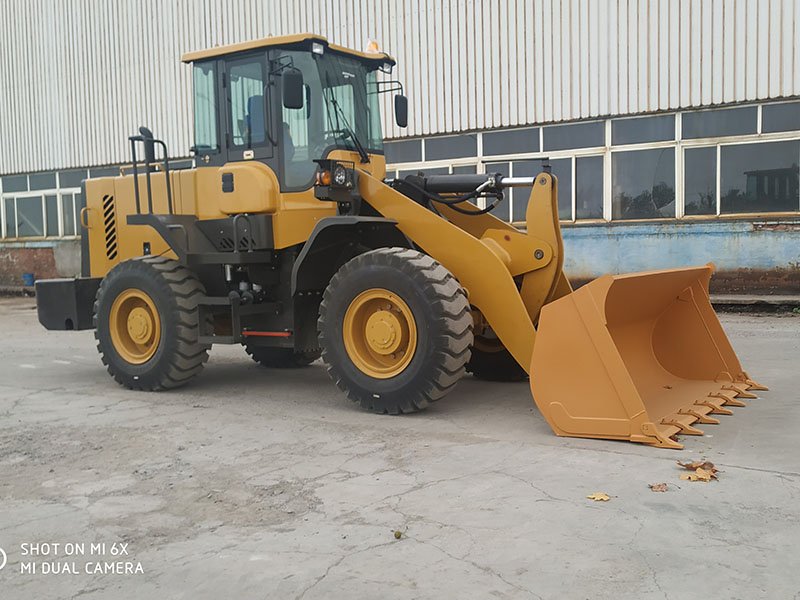

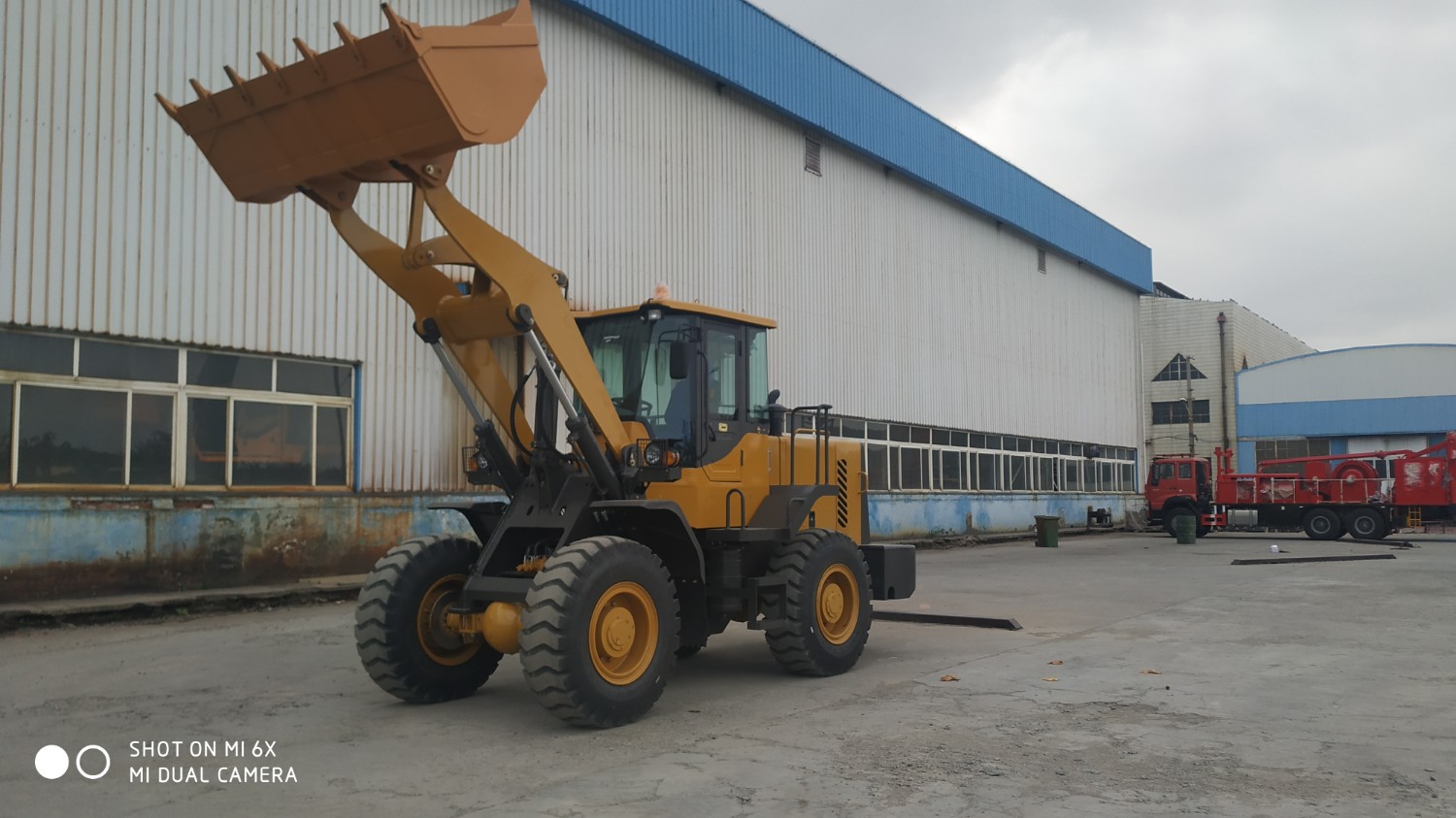

SHANMON938裝載機

山東威猛工程機械有限公司

公司地址：山東省青州市南環路9567號

2019-12-7

1186

信息詳情

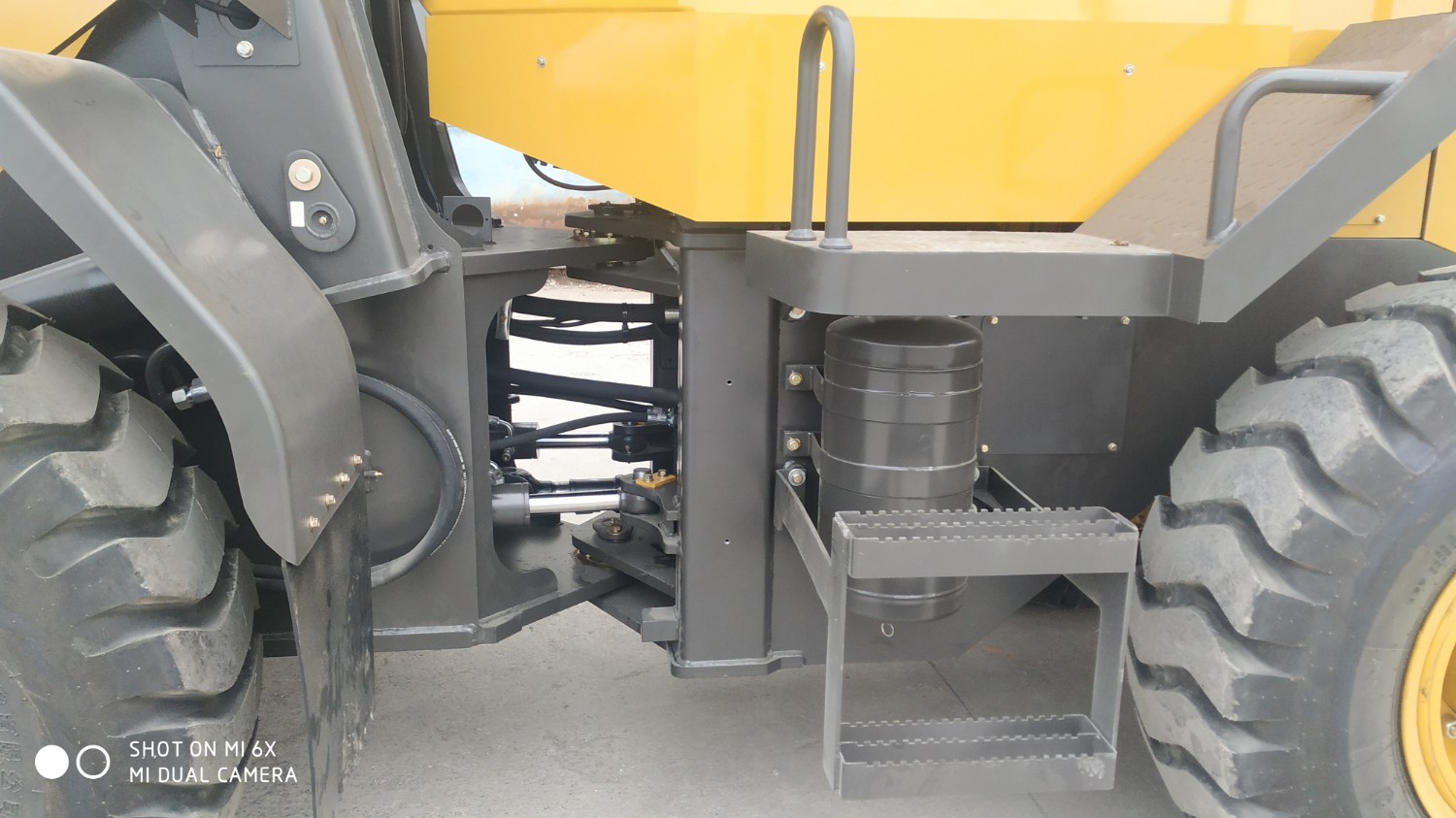

1、采用中央鉸接式車架，轉彎半徑小，機動靈活，側向穩定性好，便于在狹窄場地作業。Central articulated frame, small turning radius, mobile and flexible, lateral stability, ease of operation in the narrow space.

2、人性化設計，視野寬闊，駕駛舒適。Easy-to-read gauges display and ergonomically designed controls make the driving convenient and comfortable

3、采用了氣頂油鉗盤式四輪制動系統保證行車安全，制動平穩，安全可靠；駐車采用鉗盤式制動Air over hydraulic disc brake on 4 wheels system and expire brake is used in brake system, which has large brake force and makes stable brake and high safety

4、采用全液壓轉向，動力換檔變速，工作裝置液壓操縱，整機操作輕便靈活，動作平穩可靠。Full hydraulic steering, power shift transmission, hydraulic control device work with two lightweight flexible operation, action smooth and reliable

5、雙泵合流和同軸流量放大系統提高了工作效率和經濟性Twin pump-merging flow of working pump and steering pump. when the machine is not steering more engine power is available to breakout and lift forces. Resulting in increased economy

6、折疊式大側門鋼結構發動機罩，美觀大方，維修方便

The big loading engine side covers made in steel are of good appearance and suitable for maintenance

7、先導控制使操作更靈活舒適

Pilot hydraulic implement controls make operate easy and comfortable

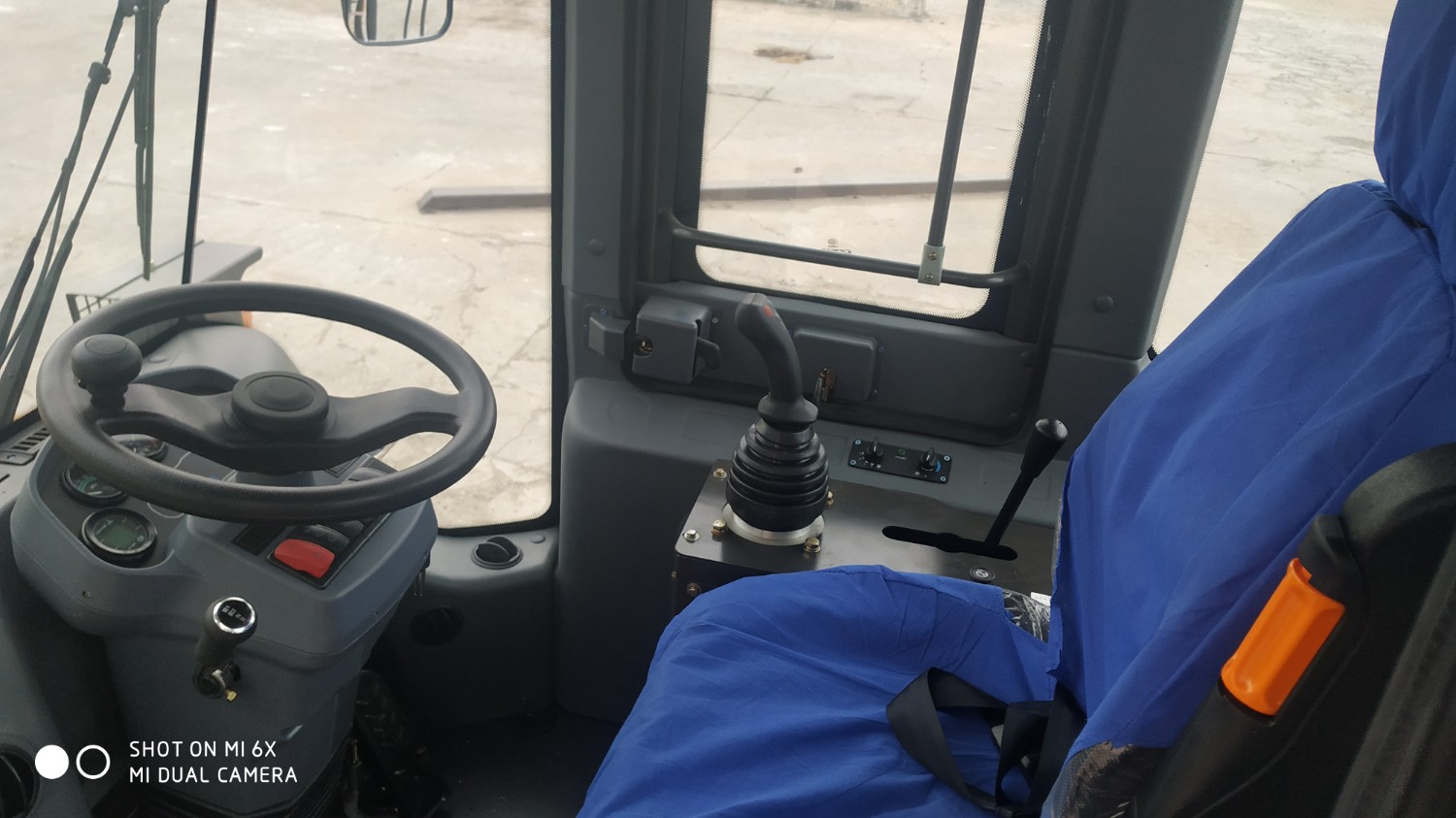

c cab, ergonomic design, pilot handle, large seat.

先進的冷卻系統：水溫、油溫實現較佳的熱平衡，提高部件及油品壽命，延長整機使用壽命。Advanced cooling system: water temperature, oil temperature to achieve the best thermal balance, improve the life of components and oil products, extend the service life of the entire machine.

Performance	1	額定載重量 rated loading	3000kg
	2	整機重量 overall weight	10500kg
	3	斗容量 bucket capacity	1.8m3
	4	最大牽引力 maximum traction force	95KN
	5	最大掘起力 maximum breakout force	127KN
	6	最大爬坡能力 maximum grade ability	30℃
	7	最大卸載高度 maximum dump height	3150mm
	8	最大卸載距離 maximum dump reach	1200mm
	9	整機外形尺寸 overall dimension (L×W×H)	711025003100mm
	10	最小轉彎半徑 minimum turning radius	6060mm
發動機Engine	11	型號model	Duetz TD226B
	12	型式type	直列、水冷、四沖程、直噴 Vertical, in-line, water cooled, 4-stroke diesel engine
	13	汽缸數-缸徑行程NO. of cylinder-borestroke	6-108*125
	14	額定功率 rated power	92kw—2200r/min
	15	最大扭矩 maximum torque	500N.m
	16	最低燃油消耗率 min. fuel-consume ratio	≦210Kw/ h
傳動系統 Transmission system	17	變矩器型式 torque converter	YJ315-X
	18	變速箱型式 gearbox mode	動力換擋power shift,
	19	檔位數 gears	前進檔4個，倒退檔2個 4 forward 2 reverse
	20	最高車速 maximum speed	40km/h
驅動橋Drive axles	21	主減速式： main reducing spiral	螺旋傘齒輪一級減速bevel gear grade 1reduction
	22	輪邊減速型式 decelerating mode	一級行星減速 Planetary reduction grade 1
	23	軸距 wheel base (mm)	2850mm
	24	輪距 wheel tread	1800mm
	25	最小離地間隙 ground clearance	370mm
液壓系統 Hydraulic system	26	系統工作壓力 system working pressure	18MPa
	27	動臂提升時間 boom lifting time	4.5
	28	三項和 total time	8.8±0.5s
制動系統 Brake system	31	行車制動 service brake	氣頂油鉗盤式四輪制動 air assist disc brake on 4 wheels
制動系統 Brake system	32	駐車制動 parking brake	手動嵌盤式 Manual disk brake
輪胎 Tyre	33	規格 type specification	17.5-25
	34	前輪氣壓 front tyre pressure	0.4Mpa
	35	后輪氣壓 rear tyre pressure	0.35Mpa
